Assembly Instructions

Rivet Assembly(x12)

Rivet Cap(x8)

Rivet Cover (x4)

M4x10mm (x2)

Handle

Gable

Window

Top/Bottom(x2)

Control Deck

1

Slide control deck into mounting groove on bottom.

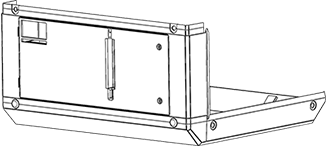

2

Secure control deck with rivet assembly and rivet cover.
*Refer to Rivet Cover

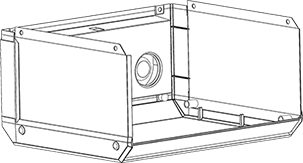

3

Slide left and right stainless steel gable into mounting groove on bottom and control deck.

4

Secure gable with rivet assembly and rivet cap.
*Refer to Rivet Cap Assembly

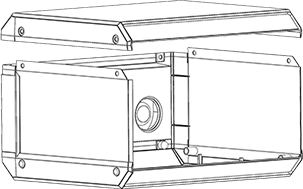

5

Slide top on assembly making sure gables and control deck are seated in the mounting groove.

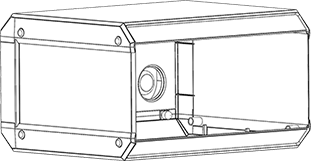

6

Secure top with rivet assembly and rivet cap.
*Refer to Rivet Cover Assembly

7

Mount handle to window with (2) M4x10mm screws.

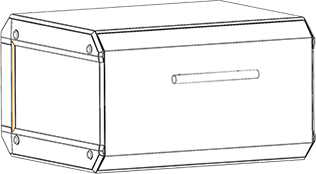

8

Attach window to complete assembly.

1

Insert rivet sleeve into mounting hole, push in rivet pin to secure assembly.

2

On the other side securely puch on rivet cover.

1

Insert rivet sleeve into hole.

2

Push rivet cap onto rivet sleeve.

3

Push in rivet pin to secure assembly.
